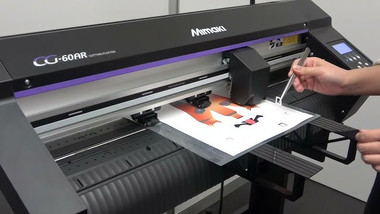

Mimaki CG60-AR Large Format Vinyl Cutter and Cutting Plotter - Wide Format

"Stay sharp" More profit per cut

• Realizing a cut pressure of 550 g, which is the highest in the entry class, expanding the range of cuttable materials.
• The maximum cutting speed is 105% of the previous model for greater productivity New lineup options for cardboard full cutting.
• Easy to cut output from Windows plotter driver.
• Equipped with an ID cut function, realizing efficient print & cut in seamless coordination with Mimaki's printers.
• A cutting pressure of 550 g, which is the highest in its class, expands the range of cut materials.
• The highest-in-class cutting pressure enables the cutting of various materials such as sheets (e.g. PVC/fluorescent/reflective/rubber sheets) and the cutout of cardboard.
• 24" Large Format Vinyl Cutter
• 24-inch Wide Format Vinyl Cutter



  Product Specifications

  Item		CG-60AR
  Applicable media width		90 - 740 mm (3.5"- 29.1")
  Cuttable area*1		606 mm × 51 m (23.9" ×167.3")
  Maximum speed		Cutting: 73 cm/s 45°direction: 103 cm/s
  Settable speeds		1 - 10 cm/s (1 cm/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment)
  Mechanical resolution		X-axis: 2.5 μm, Y-axis: 5 μm
  Program step		25, 10 μm (MGL-Ⅱc) / 100, 50 μm (MGL-Ⅰc1)
  Repetition accuracy*2		0.2 mm / 2 m
  Accuracy guarantee range		586 mm × 2 m
  Maximum pressure		550 g
  Set pressure	Cutter	10 - 20 g (2g step), 20 - 100 g (5 g step), 100 - 550 g (10 g step)
  	Pen	10 - 20 g (2g step), 20 - 100 g (5 g step), 100 - 150 g (10 g step)
  	Creasing tool (option)	10 - 20 g (2g step), 20 - 100 g (5 g step), 100 - 550 g (10 g step)
  Applicable (cuttable) media*3 *4		PVC sheet (0.25 mm thick or less; laminated), rubber sheet, fluorescent sheet and reflective sheet
  		Cardboard (used in combination with an optional sheet table)
  Usable tools*5		Eccentric cutter, commercially available ball-point pen, Creasing tool (option)
  Commands*6		MGL-Ⅱc / Ⅰc1
  Interface		USB, RS-232C, Ethernet
  Receive buffer capacity		About 27 MB as standard (17 MB when sorting is effective)
  Operational environment		Temperature: 5 to 35°C; Humidity: 35 to 75% Rh (without condensation)
  Power supply		AC 100 - 240 V 1A 50/60Hz
  Power consumption		168W or less
  Dimensions (W × D × H)		1,010 × 355 × 355 mm (39.8" × 14.0" × 14.0")
  		1,010 × 580 × 1,160 mm (39.8" × 22.8" × 45.7") (with the stand)
  Weight		17 kg (37.5 lb)
  		27 kg (59.5 lb) (with the stand)
  Stand		Optional

1. Feed length is limited depending on the software used.
2.  The accuracy depends on Mimaki-designated media, cutter blade and cutting conditions. See the operation manual for details.
3. For fluorescent and reflective sheets, use the blade dedicated to each material.
4. Thick cardboard may reduce cut quality and precision.
5. Use a commercially available ball-point pen with dia. 8-9 mm and without protrusion nor taper on the clamp position.
6. During the use of USB or Ethernet connection, ESC-based MGL-IIc commands are unavailable.
